HSL FUEL Cell

DIESEL STORAGE


THE SAFEST WAY TO STORE YOUR FUEL.


Built to last a lifetime, the Homestead Legacy Fuel Cell is the safest way to store and dispense your diesel for all your construction, farm and homestead equipment.


The Fuel Cell ensures you are compliant with new environment laws in Canada and the US that require double way tanks, while eliminating the anxiety of suffering an accidental fuel leak and the huge cost associated with cleanup and potential environment charges.

Meets UL-142, ULC-S601-14 and UN-31-A/Y compliance as standard

Welded Joints: A Bond That Lasts

North American High-Quality Steel Backbone

Canadian Craftsmanship at its Finest

Double-walled tank construction

SPECIFICATIONS:

Dimensions:  52" L x 52" W x 58"H

EMPTY WEIGHT 1300 LBS

FULL WEIGHT 3500 LBS

BUY NOW

KEY FEATURES:

        COMES STANDARD WITH:

  • A Fill-Rite 15 GPM 12 Volt Fuel Pump
  • Fill-Rite Nozzle
  • 20ft 3/4 High Quality discharge hose
  • Spin On fuel filter
  • Clear Glass fuel guage
  • Double-walled tank construction consists of a 5mm primary steel tank and a 3mm secondary steel tank
  • Baffled internally to reduce product movement should the unit be moved with contents.*

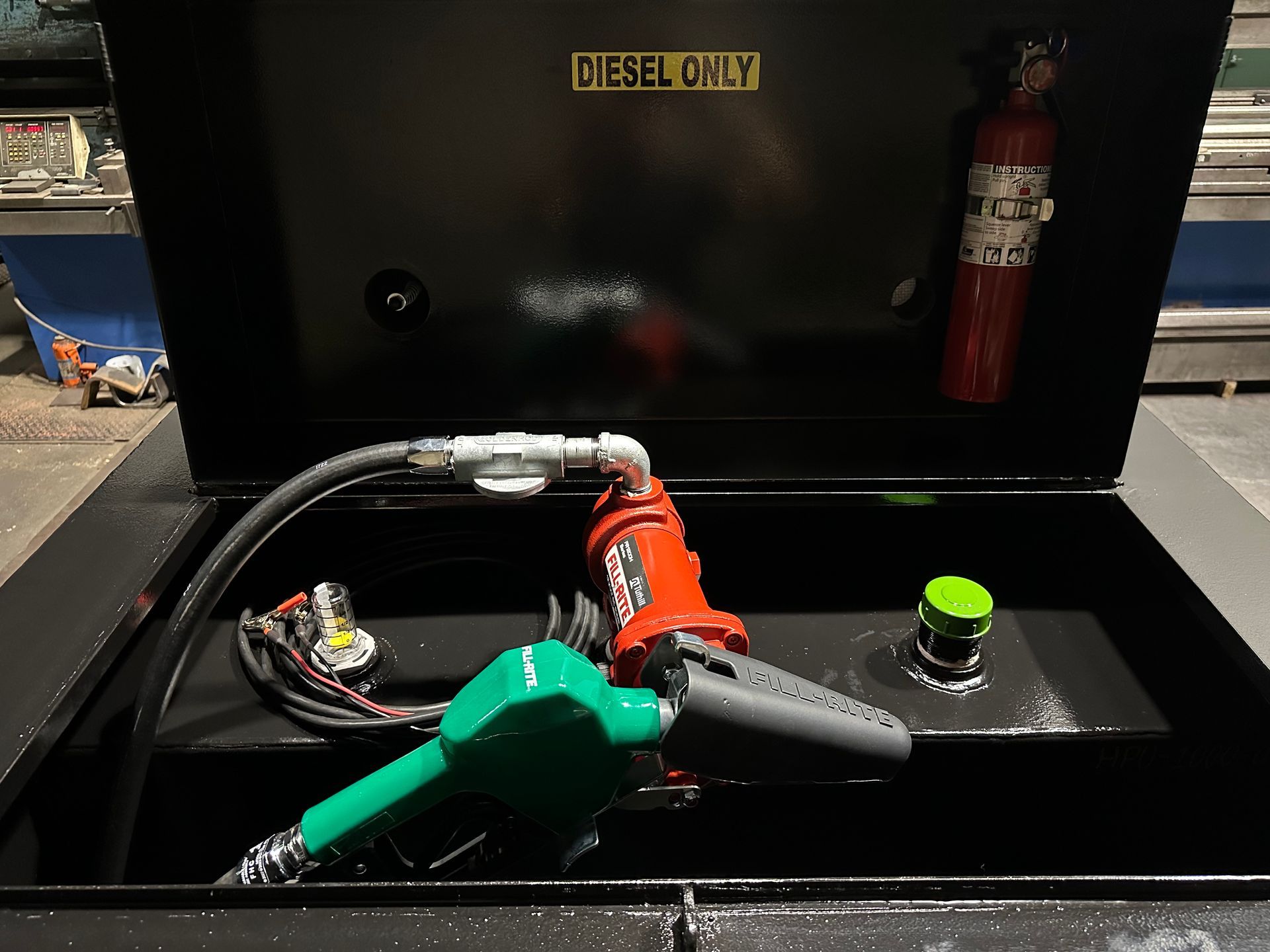

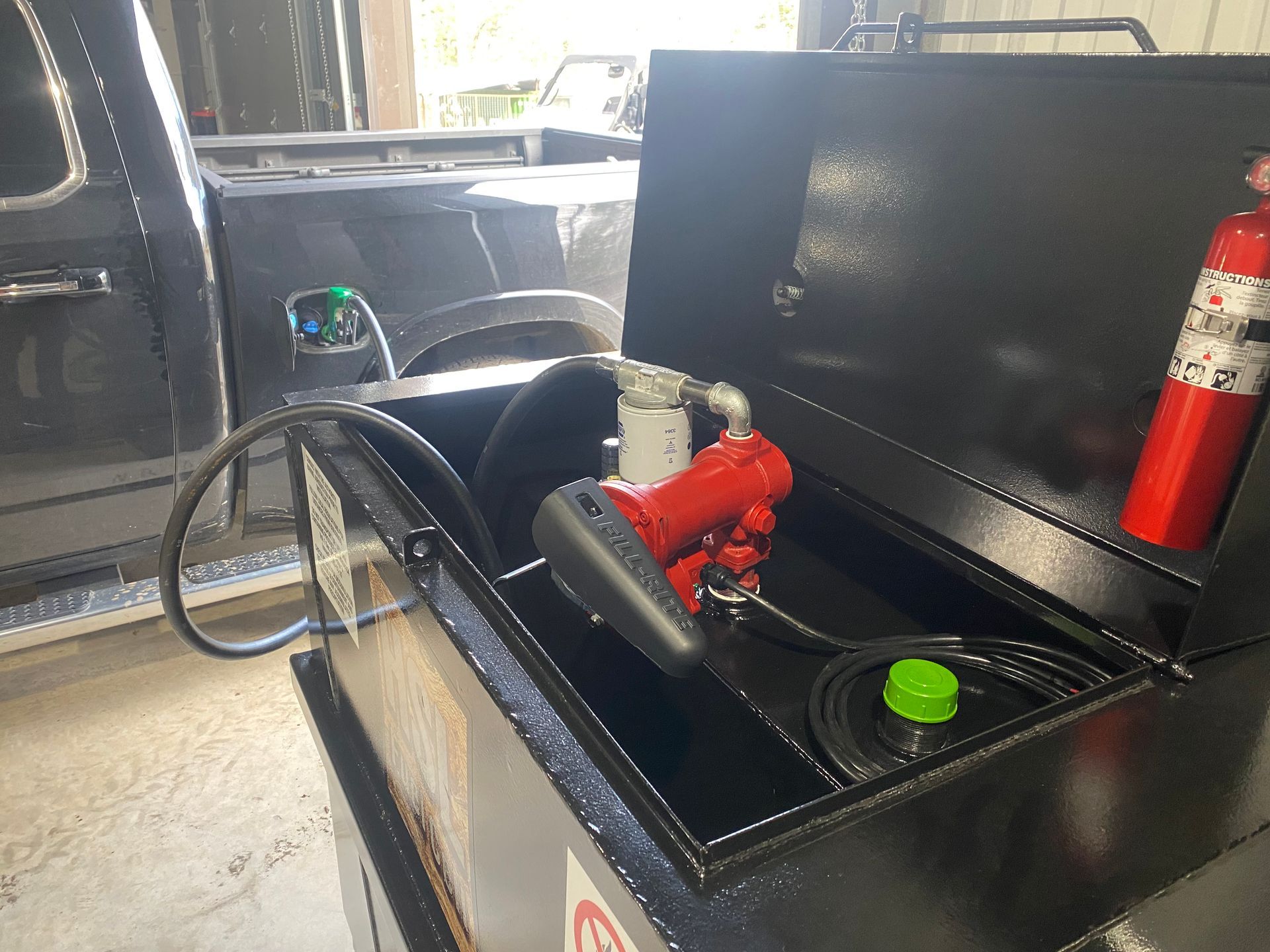

Hose and nozzle cabinet with pump all housed under heavy duty lockable lid for additional security.
  • cut-outs available on sides of lid to allow flexible hoses or pipework to external requirements such as generators and heaters.
  • Complete with 4 vents (2x e-Vents and 2 standard vents and multiple port bungs for future customizable authorized additions.
  • Air pressure tested and water pressure prior to leaving our factory as part of the UL mandates.
Charcoal Grey paint finish as standard. Other colour options are available upon request to match your fleet and company colours.
  • Flammable and combustible liquid safety labels and decals supplied as standard.
  • Forklift pockets and certified tie down/lifting points at each corner.

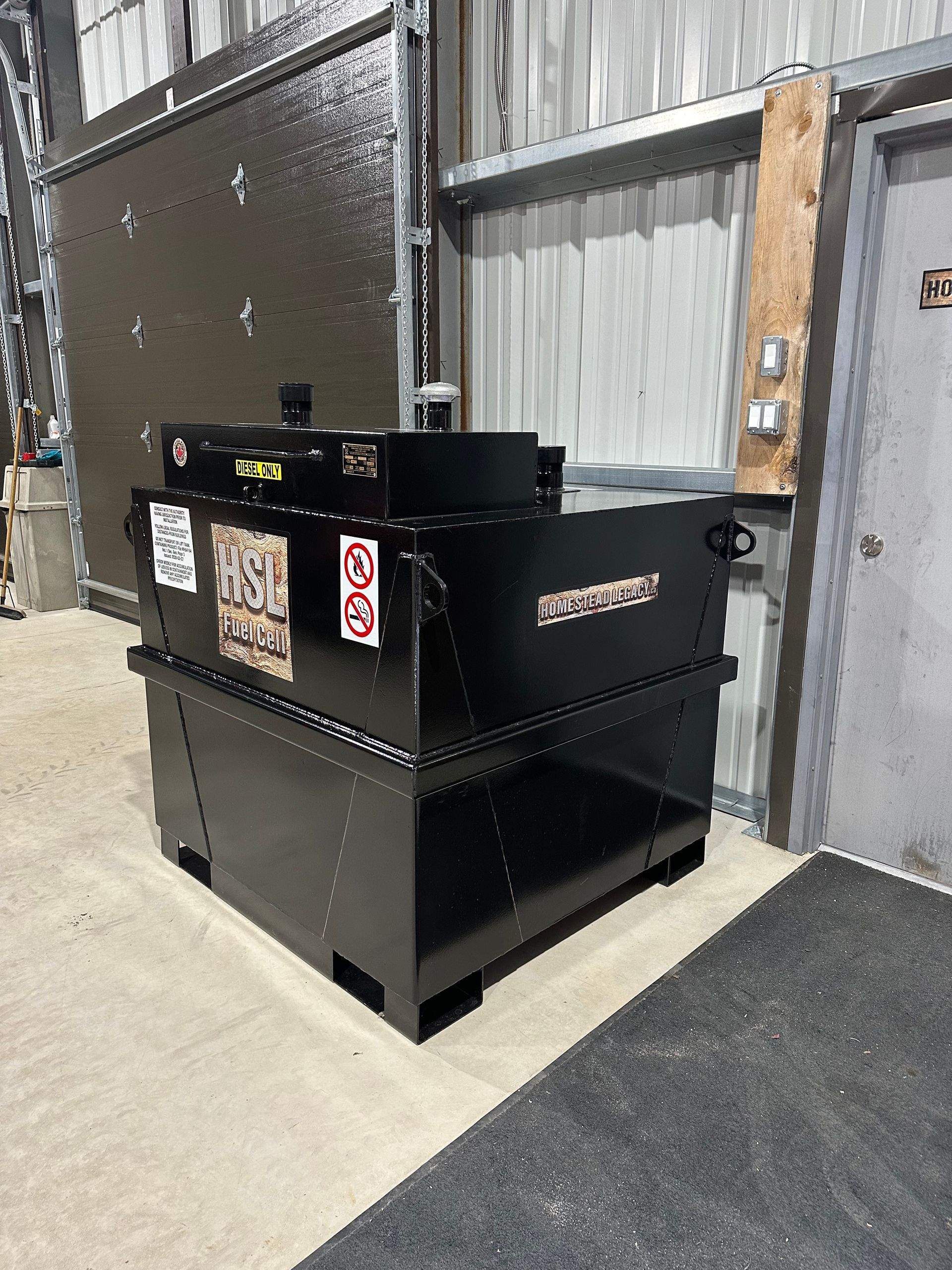

A large black box is sitting in a warehouse next to a door.

FINISH TO MATCH YOUR FLEET OR COMPANY COLOURS

Homestead Legacy Fuel Cell come in standard Charcoal Grey paint finish. Other colour options are available upon request to match your fleet and company colours.

TRANSPORTATION MADE EASY

The Homestead Legacy Fuel Cell is built for easy transporting/handling and includes forklift pockets and certified tie down/lifting points at each corner.

A tractor is parked behind a black box with the lid open.

VERSTILITY TO SIMPLIFY THE JOB

The Homestead Legacy Fuel Cell makes your job easier by incorporating cut-out on the sides of the lid to allow flexible hoses or pipework to connect to external devices such as generators or heaters.

QUALITY CRAFTSMANSHIP THAT MEETS COMPLIANCE

The Fuel Cell is built to superior quality and safety specifications that comply with UL standards and environmental laws in Canada and the USA.

why choose HOMESTEAD LEGACY

FUEL CELLS?


A shield with a star and a ribbon on it.
A black and green maple leaf on a white background.
A stethoscope is attached to the arm of a person.
A compass with a green arrow pointing to the north.
Two arrows pointing in opposite directions on a white background.

BUILT TO LAST

A black hsl fuel cell is sitting on a white surface

HSL FUEL CELL

DIESEL / GASOLINE STORAGE

$ 8,300 CAD

 52” W x 52” L x 58” H

FUEL CAPACITY: 1000 LTR / 264 US GAL

1300 LBS

BUILT FOR Outdoors Enthusiasts


We aren't just building TOOLS AND IMPLEMENTS, we're building a community of like-minded individuals who appreciate the beauty of the outdoors.

SIGN UP FOR EXCLUSIVE NEWS & SALES OFFERS

GOT A QUESTION?

We’re here to help.

  • Why do I need a Homestead Legacy Fuel Cell?

    The Homestead Legacy Fuel Cell is the answer to a very common issue - It’s the safest way to store and dispense your fuel for all your construction, farm and homestead equipment.

  • Is there a warranty on the Homestead Legacy Fuel Cell?

    Yes, we stand by the quality of our products. The Homestead Legacy Fuel Cell comes with a 3-year warranty, providing you with peace of mind and confidence in your purchase.

  • Does the Homestead Legacy Fuel Cell comply with Environmental and Safety regulations?

    Absolutely!  The HSL Fuel Cell meets  UL-142, ULC-S601-14 and UN-31-A/Y compliance as standard and is built to superior specifications to ensure environmental law complaince in Canada and the USA. ALWAYS CONTACT YOUR LOCAL AUTHORITY TO CONFIRM PRIOR TO PURCHASE.


  • How is shipping handled, and what are the associated costs?

    We offer efficient and reliable shipping options for our groomers. Shipping costs are calculated based on your location and the size of the groomer. For detailed shipping information, please contact us at sales@homesteadlegacy.ca or (416) 805-7440.

  • Are replacement parts available for Homestead Legacy Fuel Cell?

    Yes, we provide a range of replacement parts to ensure the ongoing functionality and maintenance of the Fuel Cell. Contact our customer support for assistance in acquiring any necessary replacement parts.
